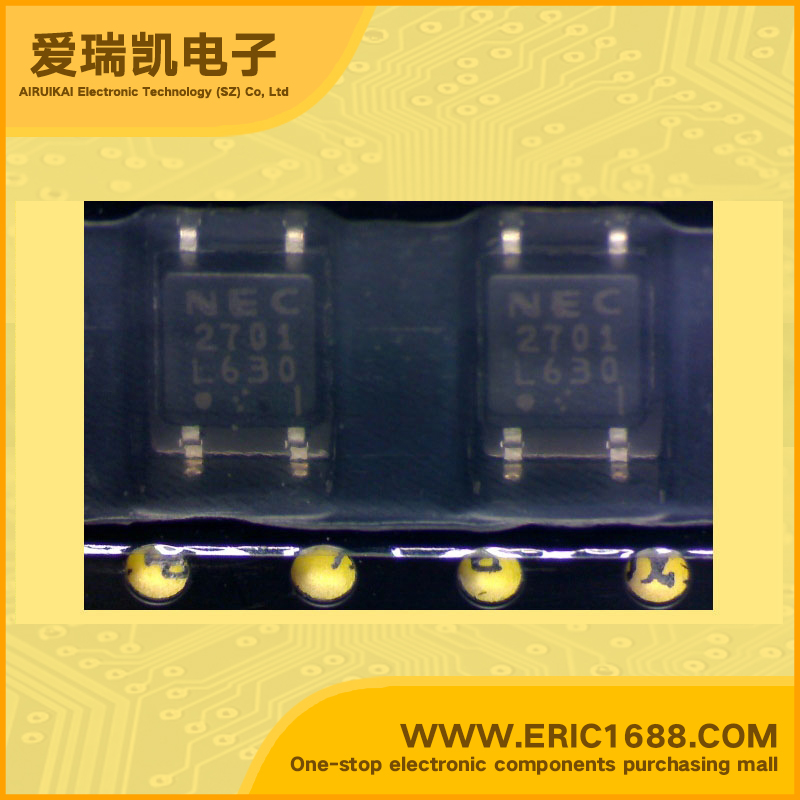

光电耦合器 晶体管，光电输出 PS2701-1-E3 SOP4 marking/标记 2701
| 通道数Number of Channels | 1 |
| 输入类型Input Type | DC |
| 电压 - 隔离Voltage - Isolation | 3750Vrms |
| 电流传输比（最小值）Current Transfer Ratio (Min) | 50% @ 5mA |
| 电流传输比（最大值）Current Transfer Ratio (Max) | 300% @ 5mA |
| 电压 - 输出Voltage - Output | 40V |
| 电流 - 输出/通道Current - Output / Channel | 80mA |
| 电流 - DC 正向 (If)Current - DC Forward (If) | 50mA |
| Vce 饱和值（最大值）Vce Saturation (Max) | 0.3V |
| 输出类型Output Type | 晶体管 Transistor |
| Description & Applications | Features • PHOTOCOUPLER • HIGH ISOLATION VOLTAGE SOP MULTI PHOTOCOUPLER • High isolation voltage (BV = 3 750 Vr.m.s.) • SOP (Small Outline Package) type • High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.) • Ordering number of taping product: PS2701-1-F3, F4 • Safety standards • UL approved: File No. E72422 • BSI approved: File No. 8219/8220 • CSA approved: File No. CA 101391 • DIN EN60747-5-2 (VDE0884 Part2) approved (Option) APPLICATIONS • Hybrid IC • Measuring instruments • Power supply • Programmable logic controllers |
| 描述与应用 | 特点 •光耦合器 •高隔离电压SOP多光耦合器 •高隔离电压（BV=750 Vr.m.s.） •SOP（小外形封装）型 •高速开关（TR =3μs典型值，：TF =5微秒TYP。） •录音产品订购数量：PS2701-1-F3，F4 •安全标准 •UL批准：文件编号E72422 •BSI批准：文件编号八千二百二十分之八千二百十九 •CSA批准：文件编号CA101391 •DIN EN60747-5-2（VDE0884第2部分）批准（选配） 应用 •混合IC •测量仪器 •电源 •可编程逻辑控制器 |
| 规格书PDF |
