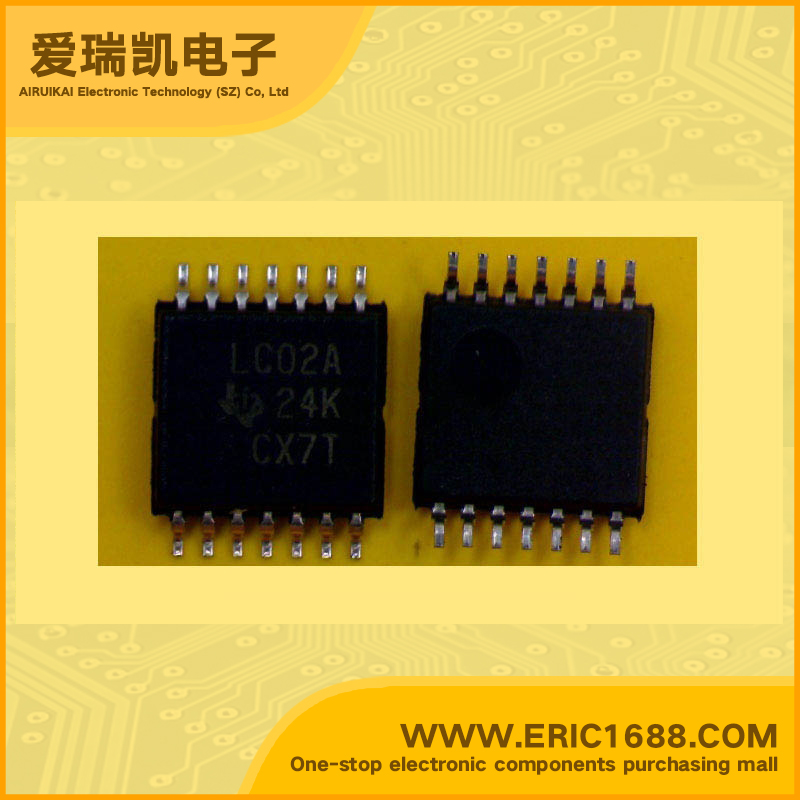

集成电路IC 或非门 SN74LVC02APWR TSSOP14 marking/标记 LC02
| 逻辑类型Logic Type | 或非门 NOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~3.6V |
| 静态电流IqCurrent - Quiescent (Max) | 10uA |
| 输出高，低电平电流Current - Output High, Low | -24mA,24mA |
| 低逻辑电平Logic Level - Low | 0.8V |
| 高逻辑电平Logic Level - High | 2V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 4.2ns @ 3.3V，50pF |
| Description & Applications | QUADRUPLE 2-INPUT POSITIVE-NOR GATES ；Operate From 1.65 V to 3.6 V • Latch-Up Performance Exceeds 250 mA Per • Specified From –40°C to 85°C, JESD 17 –40°C to 125°C, and –55°C to 125°C • ESD Protection Exceeds JESD 22 • Inputs Accept Voltages to 5.5 V – 2000-V Human-Body Model (A114-A) • Max tpd of 4.4 ns at 3.3 V – 200-V Machine Model (A115-A) • Typical VOLP (Output Ground Bounce) – 1000-V Charged-Device Model (C101)<0.8 V atVCC= 3.3 V, TA= 25°C • Typical VOHV(Output VOH Undershoot)>2 V at VCC= 3.3 V, TA= 25°C |
| 描述与应用 | 四路2输入正或非门;操作从1.65 V至3.6 V•闭锁性能超过250 mA每 •额定温度范围从-40°C至85°C，JESD17 -40°C至125°C和-55°C至125°C•ESD保护超过JESD22 •接受输入电压为5.5 V - 2000-V人体模型（A114-A） •最大TPD为4.4 ns，3.3 V - 200-V机型号（A115-A） •典型的VoIP （输出地弹跳） - 1000-V带电器件模型（C101）<0.8 V atVCC=3.3 V，TA= 25°C •典型VOHV（输出VOH冲）>2 V在VCC =3.3 V，TA= 25°C |
| 规格书PDF |
