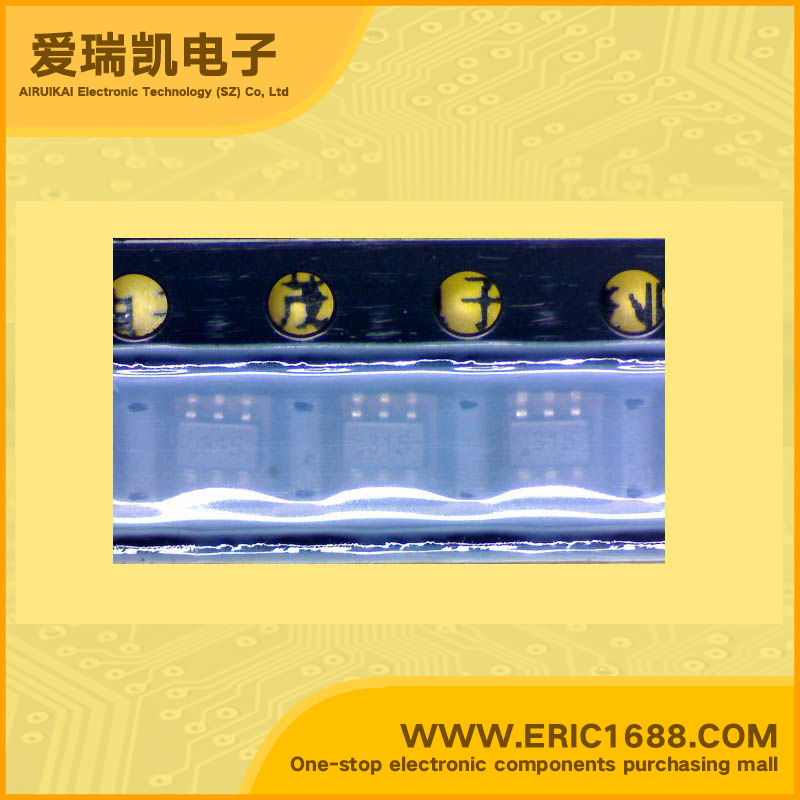

STF203-15.TC 瞬态抑制二极管TVS/ESD 5.25V 0.1W/100mW SOT-363/SC70-6 标记315
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5.25V |
| 反向击穿电压VBRBreakdown Voltage | 6V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | |
| 峰值脉冲电流IPPmPeak Forward Surge Current | |
| 额定耗散功率PdPower dissipation | 0.1W/100mW |
| Description & Applications | Features •USB Upstream Port Filter and TVS For EMI Filtering and ESD Protection •Bidirectional EMI/RFI filtering and line termination with integrated ESD protection •ESD protection for USB power and data lines(D+ and D-) to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) •Filtering and termination for one USB port •Series resistors: 15Ω, 22Ω, and 33Ω •Low TVS operating voltage (5.25V) •Low leakage current •Small SC70-6L package •Solid-state technology Applications •USB Ports •Cellular Handsets •PDAs •Pagers •Digital Cameras •PCPeripherals •MP3 Players |
| 描述与应用 | 特点 •USB上行端口过滤和TVS对于EMI滤波和ESD保护 •双向EMI / RFI滤波和线路终端，集成ESD保护 •ESD保护USB电源及数据线（D+和D-） IEC61000-4-2（ESD）±15kV（空气），±8kV（接触） IEC61000-4-4（EFT）40A（5/50ns） •一个USB端口的过滤和终止 •串联电阻：15Ω，22Ω，33Ω •低TVS工作电压（5.25V） •低漏电流 •小SC70-6L封装 •固态技术 应用 •USB端口 •蜂窝手机 •掌上电脑？ •寻呼机 •数码相机 •PC外设 •MP3播放器 |
| 规格书PDF |
