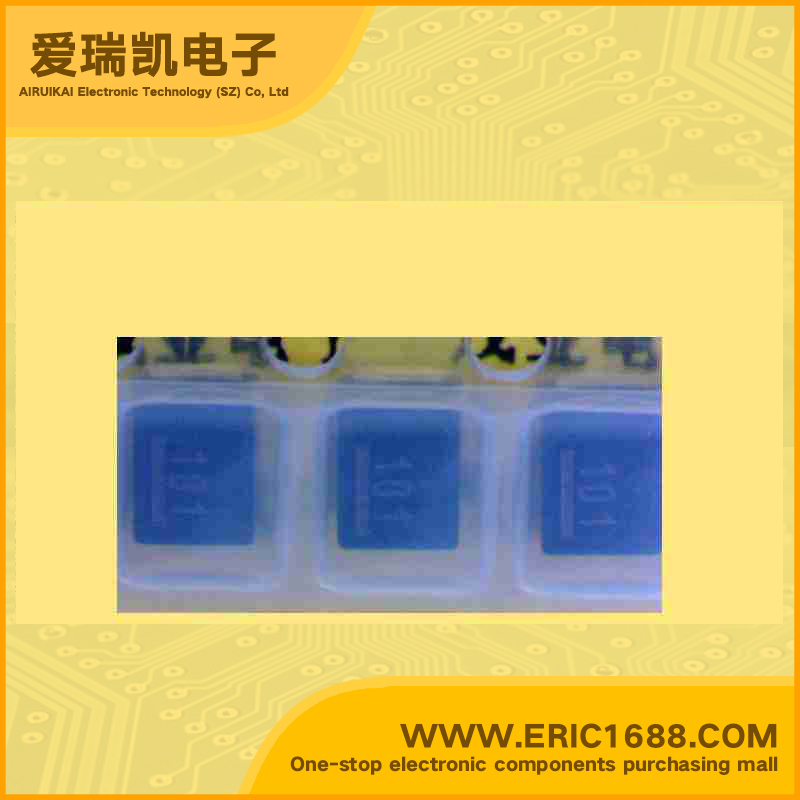

小功率电感 LLM3225-101J 100UH 3225-101J 101
| 电感值Inductance | 100UH |
| 误差Tolerance | ±5% |
| 额定电流Current Rating | 70mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 20 @ 0.796MHz |
| 自振谐频率SRFFrequency - Self Resonant | 9MHz |
| DC电阻DCRDC Resistance (DCR) | 9.0Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | Wire Wound Chip Inductors FEATURES • Wire-wound miniature chip inductor most suitable for surface mount. • It is recommended for various general use for signal conditioning in a variety of electronic equipment. • Wide inductance range from 0.1 to 1000µH. • Superior solderability and high heat-resistance for reflow soldering. • Excellent environmental and mechanical stability. • RoHS compliant. ELECTRICAL CHARACTERISTICS • Inductance Range 0.1~1000µH • Inductance Tolerance J ; ± 5% K ; ± 10% • Inductance Temperature Coefficient 750ppm/°C Max. • Operating Temperature Range − 40°C~+85°C • Storage Temperature Range − 40°C~+85°C |
| 描述与应用 | 绕线片式电感器 特点 •绕线微型片式电感器，最适合表面贴装。 •用于各种电子设备信号调节。 •宽电感范围从0.1到1000μH。 •优良的可焊和回流焊高耐热性。 •优良的环境和机械稳定性。 •符合RoHS标准。 电气特性 •电感值范围为0.1〜1000μH •电感公差J±5％K±10％ •电感温度系数750ppm/°C（最大值）。 •工作温度范围 - 40°C〜+85°C •存储温度范围 - 40°C〜+85°C |
| 规格书PDF |
