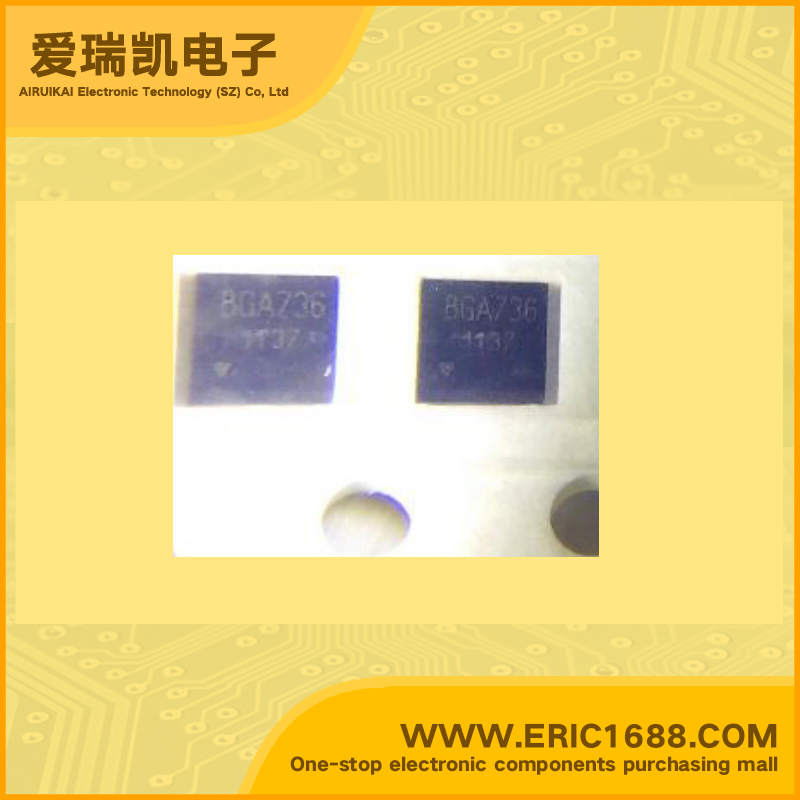

射频放大器 BGA736L16 E6327 PG-TSLP-16-1 marking/标记 BGA736
| 频率Frequency | 800MHz，900MHz，1.8GHz，1.9GHz，2.1GHz |
| P1dB | -11dBm |
| 增益Gain | 16.1dB |
| 噪声系数Noise Figure | 7.8dB |
| RF 类型RF Type | W-CDMA，HSPDA |
| 电源电压Voltage - Supply | 2.7 V ~ 3 V |
| 电源电流Current - Supply | 5.3mA |
| 测试频率Test Frequency | 1.9GHz |
| Description & Applications | The BGA736L16 is a highly flexible, tri-gain mode, and tri-band (2100, 1900/2100, 800/900 MHz) MMIC low noiseamplifier for worldwide use. Based on Infineon’s proprietary and cost-effective SiGe:C technology, the BGA736L16features dynamic gain control, temperature stabilization, standby mode, and 2 kV ESD protection on-chip andmatching off chip.While two gain modes are common in W-CDMA systems, a third gain mode has been introduced to reduce theLNA gain just enough to pass adjacent channel tests without compromising on HSDPAperformance. The1900 MHz path can be converted into a 2100 MHz path and vice versa by optimizing theinput matching and usingan additional external output matching network. This document specifies deviceperformance for the bandcombinations - UMTS bands I / II / V and UMTS bands I / IV / VIII Features Gain: 16 / 3 / -8 dB in high / mid / low gain mode Noise figure: 1.1 dB in high gain mode Supply current: 5.3 / 5.3 / 0.85 mA in high / mid / low gain modes Standby mode current consumption < 2 µA Outputs internally matched to 50 Ω2 kV HBM ESD protection Low external component countSmall leadless TSLP-16-1 package (2.3 x 2.3 x 0.39 mm)Pb-free (RoHS compliant) package |
| 描述与应用 | 所述BGA736L16是一个高度灵活，三增益模式，和三频（2100，1900/2100，800/900 MHz）的高频MMIC低噪声放大器，用于在世界范围内使用基于英飞凌专有的和具有成本效益的SiGe：C技术，BGA736L16具有动态增益控制，温度稳定，待机模式和片2 kV ESD保护和匹配片外而两个增益模式是在W-CDMA系统共同的第三增益模式已被引入，以减少LNA增益足够通过相邻信道测试，在不影响性能的HSDPA的1900兆赫路径可以通过优化的输入匹配，并使用被转换成2100 MHz的路径，反之亦然一个额外的外部输出匹配网络。该文件规定了乐队设备性能组合 - UMTS频段I / II/ V和UMTS频段I / IV/ VIII产品特点增益：16/3/-8 dB的高/中/低增益模式噪声系数：1.8分贝高增益模式电源电流：5.3/5.3/0.85毫安高/中/低增益模式待机模式电流消耗<2μA输出内部匹配50Ω2千伏HBM ESD保护低外部元件数量小型无铅TSLP-16-1封装（2.3×2.3×0.39毫米）无铅（符合RoHS）封装 |
