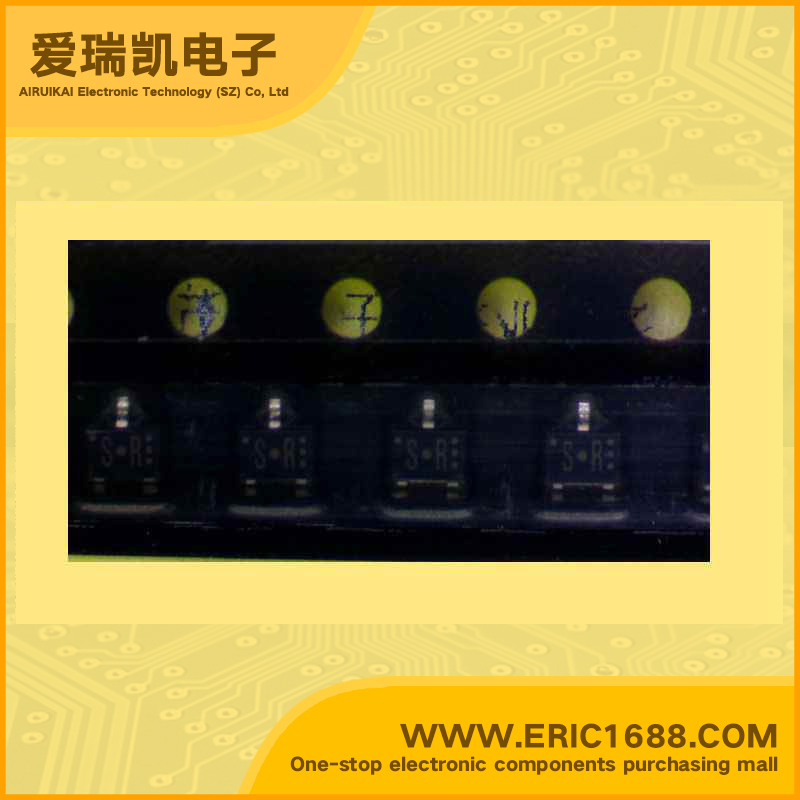

2SC3929-R NPN三极管 35V 50mA 80MHz 180~360 600mV/0.6V SOT-323/SC-70 marking/标记 SR 低频输出放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 35V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 180~360 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 600mV/0.6V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN epitaxial planer type For low-frequency output amplification Complementary to 2SA1531 and 2SA1531A Low noise voltage NV High foward current transfer ratio hFE S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | NPN硅外延平面型 用于低频输出放大 与2SA1531和2SA1531A互补 低噪声电压NV 高电流传输比HFE S-迷你型包装，通过带盒包装允许减小设备规模和自动插入 |
